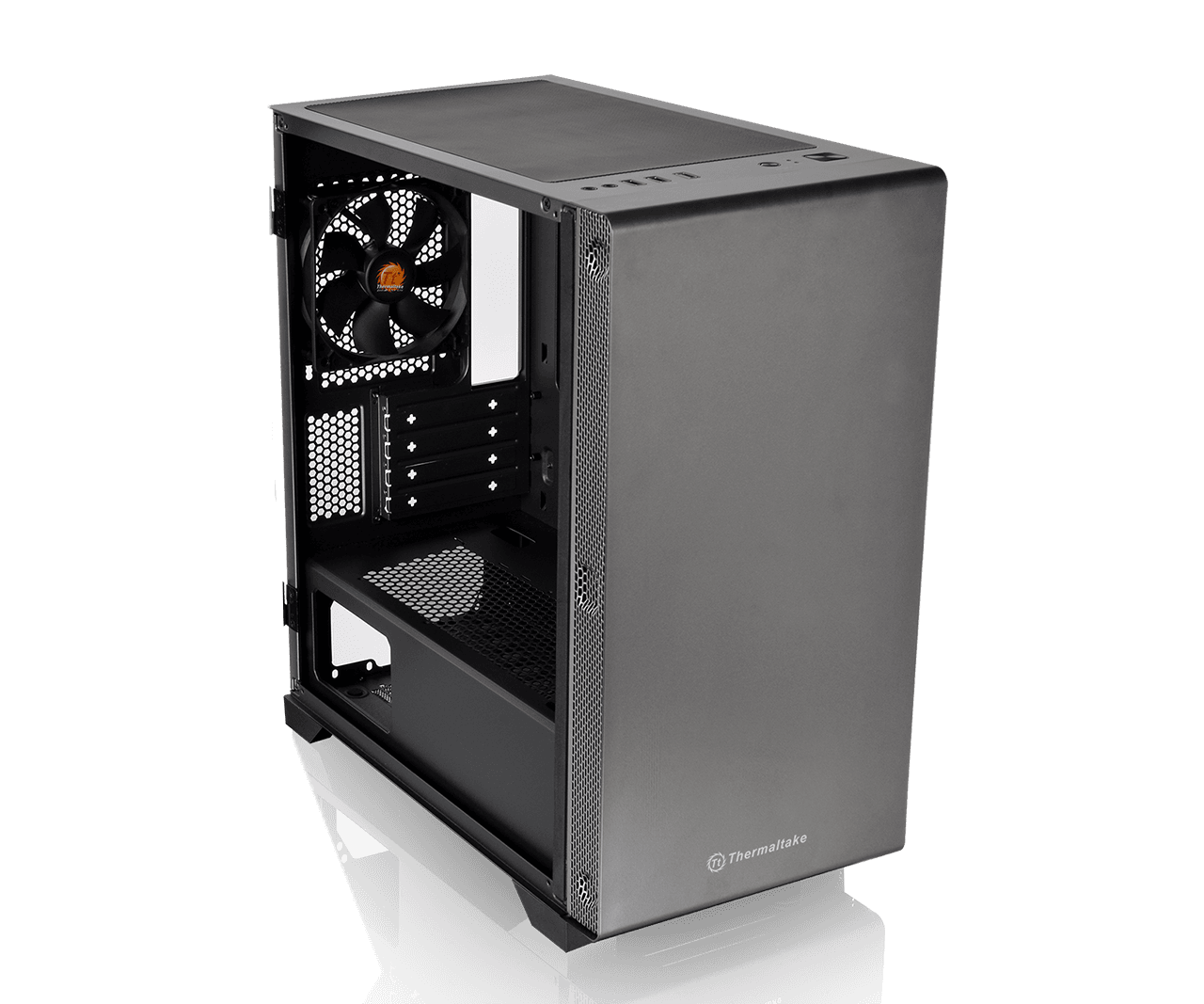

The S100 Tempered Glass Edition Micro Chassis combines sophistication, elegance, and simplicity and is built with modern steel construction. Based on the key features of S Series chassis TG, the S100 TG is designed to be even more compact and is manufactured with one tempered glass window on the left for a stunning view and one preinstalled 120mm standard fan at the rear for fundamental ventilation. The flexibility is limitless for high-end components. The S100 TG Micro Chassis is a great fit for users who are looking for a budget friendly and stylish chassis.
- The image is for reference only.
Full metal construction around the body with sleek front panel design, the S100 TG Micro Chassis demonstrates a slim and compact design style.
- The image is for reference only.
The built-in ventilated PSU cover design can improve airflow and hide those unsightly cables.
- The image is for reference only.
The 3mm tempered glass window on the side of the S100 TG is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters can provide excellent protection against both dirt and dust.
One 3.0 USB and two 2.0 USB ports on the top-front panel to grants direct access when needed.
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | - | ● | ● | - |
| Top | ● | ● | - | ● | ● | - |
| Rear | ● | - | - | - | - | - |
| Perform | Pro | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | - | ● | ● |
| Top | ● | ● | ● | - | ● | ● |
| Rear | - | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 2 | 2 | - |
| Top | 2 | 2 | 1 |
| Rear | 1 | 1 | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | ● |
| Riing FAN Series | ● | ● | ● |
| P/N | CA-1Q9-00S1WN-00 |
|---|---|
| Series | S Series |
| Model | S100 TG |
| Case Type | Micro Case |
| Dimension (H x W x D) | 441 x 220 x 411 mm (17.36 x 8.66 x 16.18 inch) |
| Net Weight | 6.1 kg / 13.45 lbs. |
| Side Panel | Tempered Glass x 1 |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA) |
| Drive Bays -Accessible -Hidden |
- 2 x 2.5” (HDD Bracket); 2 x 3.5“ or 2 x 2.5” (HDD Rack); |
| Expansion Slots | 4 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), |
| I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| PSU | Standard PS2 PSU (optional) |

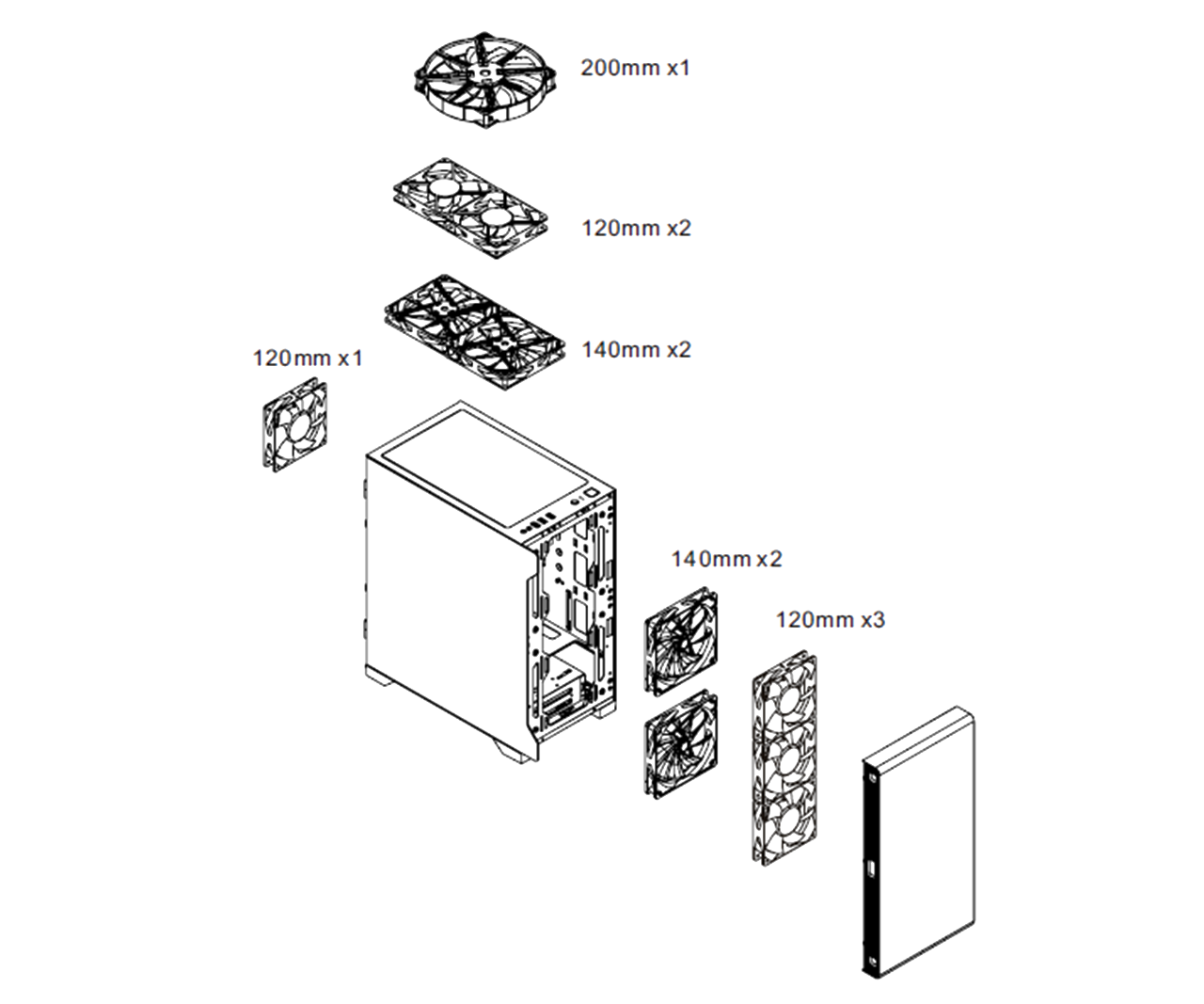

| Fan Support | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm, 1 x 200mm Rear: 1 x 120mm, |
| Radiator Support | Front: 1x 240mm, 1 x 280mm Top: 1 x 240mm, 1x 280mm Rear: 1 x 120mm, |
| Clearance | CPU cooler height limitation: 165mm PSU length limitation: 160mm VGA length limitation: 330mm |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
S100 TG Manual
- S100 TG Manual
- 8.5 MB
- 2020-04-07
