Toughpower GF2 ARGB 850W Gold
Toughpower GF2 ARGB
850W Gold is
constructed with premium components and advanced technology which makes this PSU become
a reliable and stable
power supply unit. The patented 16.8 million-color Riing Duo 140mm RGB fan with 18 LEDs
preinstalled helps
deliver brighter and richer lighting. The meticulously designed RGB side panels allow
the light to glow
through from every angles. The Toughpower GF2 ARGB 850W Gold supports synchronization
with motherboard RGB
software from ASUS, GIGABYTE, MSI, and ASRock for various illumination poossibilities.
With an ample 10-year
warranty, the Toughpower GF2 ARGB 850W Gold is able to satisfy the market, where PC
enthusiasts are looking
for a premium power supply with all the latest features.

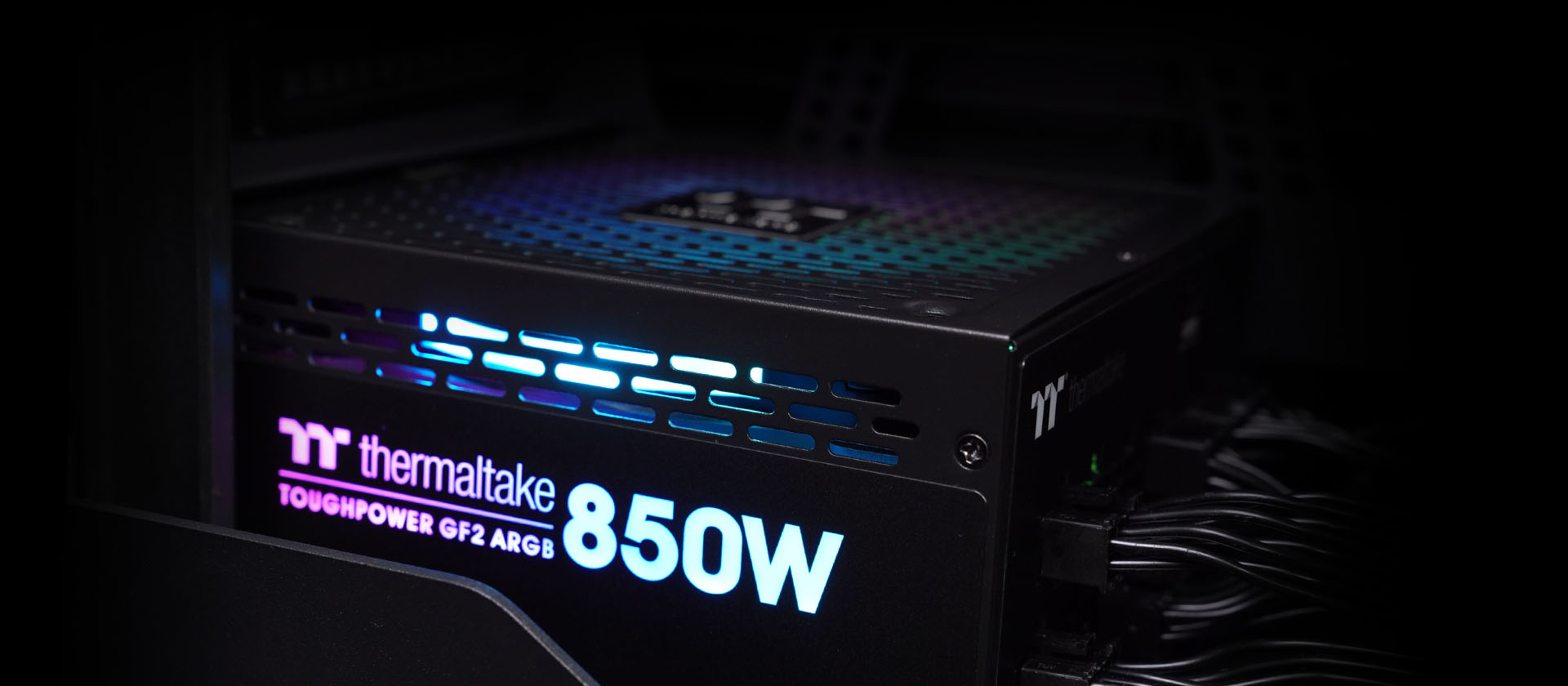

ARGB Side Panels and Riing Duo 140mm RGB Fan
Show off the glamorous illumination through the unique ARGB Side Panel design, enables you to enjoy the RGB glory from every angel. Moreover, the built-in Riing Duo 140mm RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.

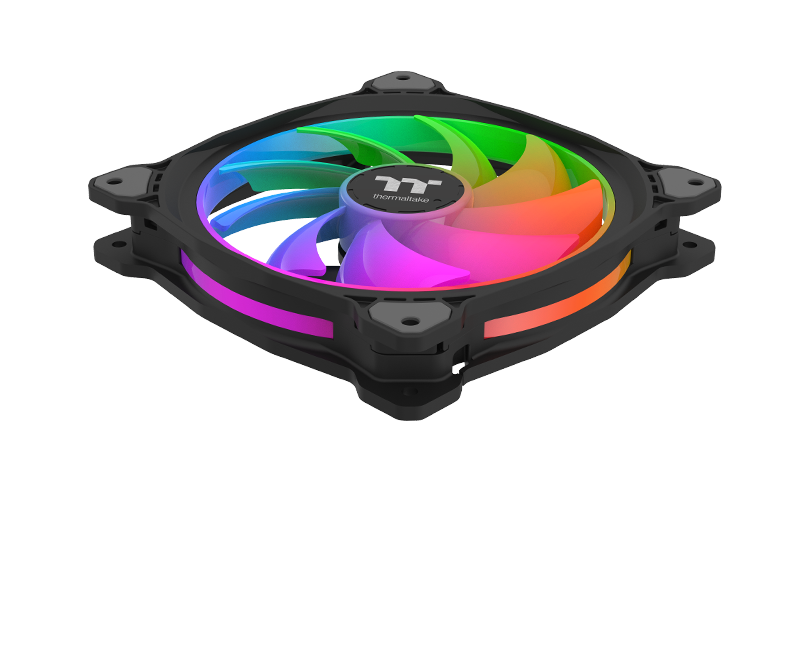

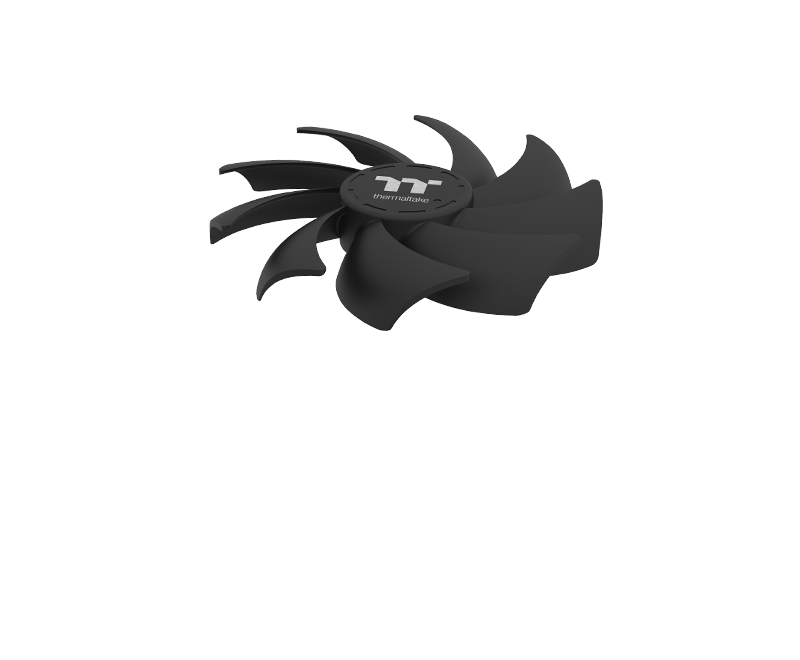

Riing Duo 140mm RGB Fan
2 LED rings, 18 ARGB LEDs
6 LEDs ARGB Side Panels
Embedded in two sides
ARGB Side Panels
7 lighting modes and a plenty of color options
Taiwan Patent: 105218791
US Patent Applied
China Patent: ZL 201621469674.7
*There are 8 colors in “Full Lighted” mode.
-
6 LEDs ARGB Side Panels (embedded in two sides)
-
Patented 16.8 million-color Riing Duo 140mm RGB Fan
-
ARGB Lighting Buttons (Mode & Color)
-
Smart Zero Fan Switch
-

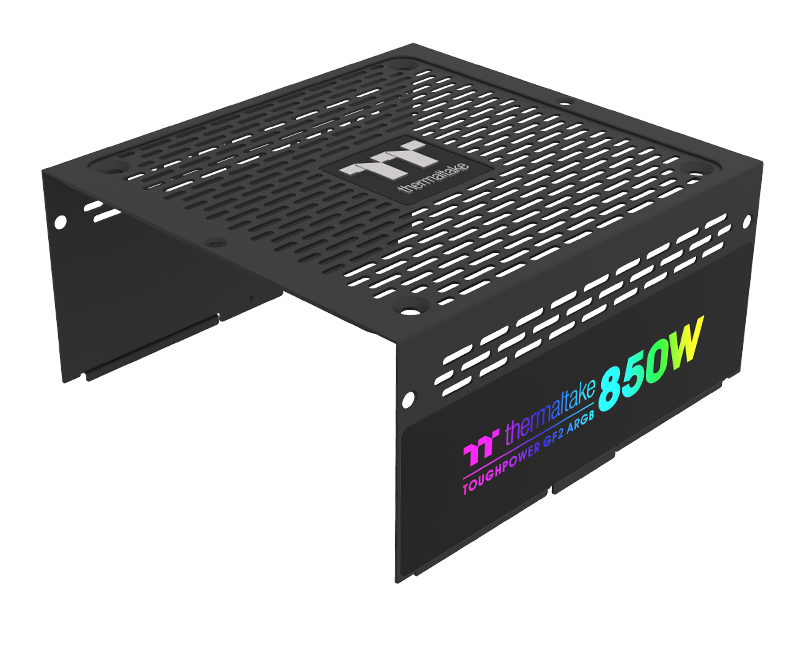

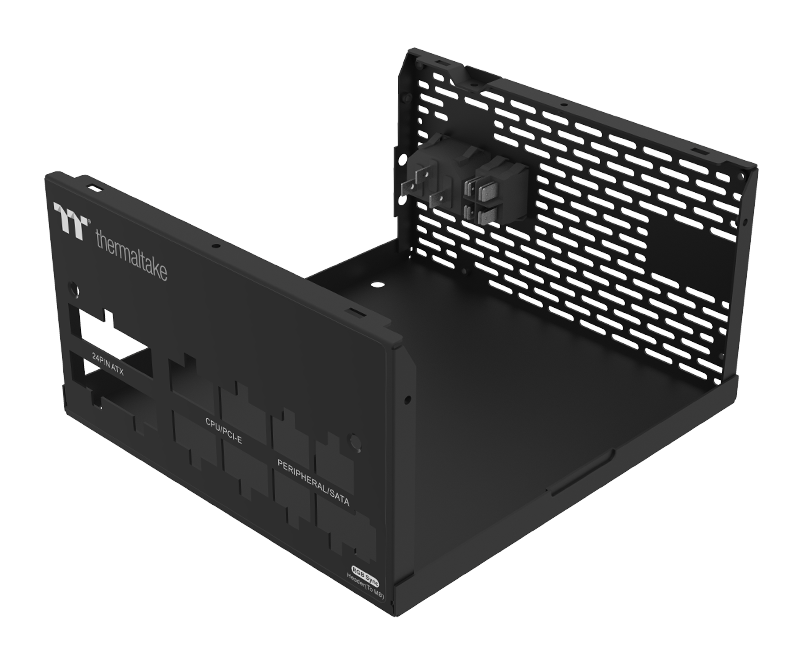

Durable Chassis
-
Side Ventilation Design
-

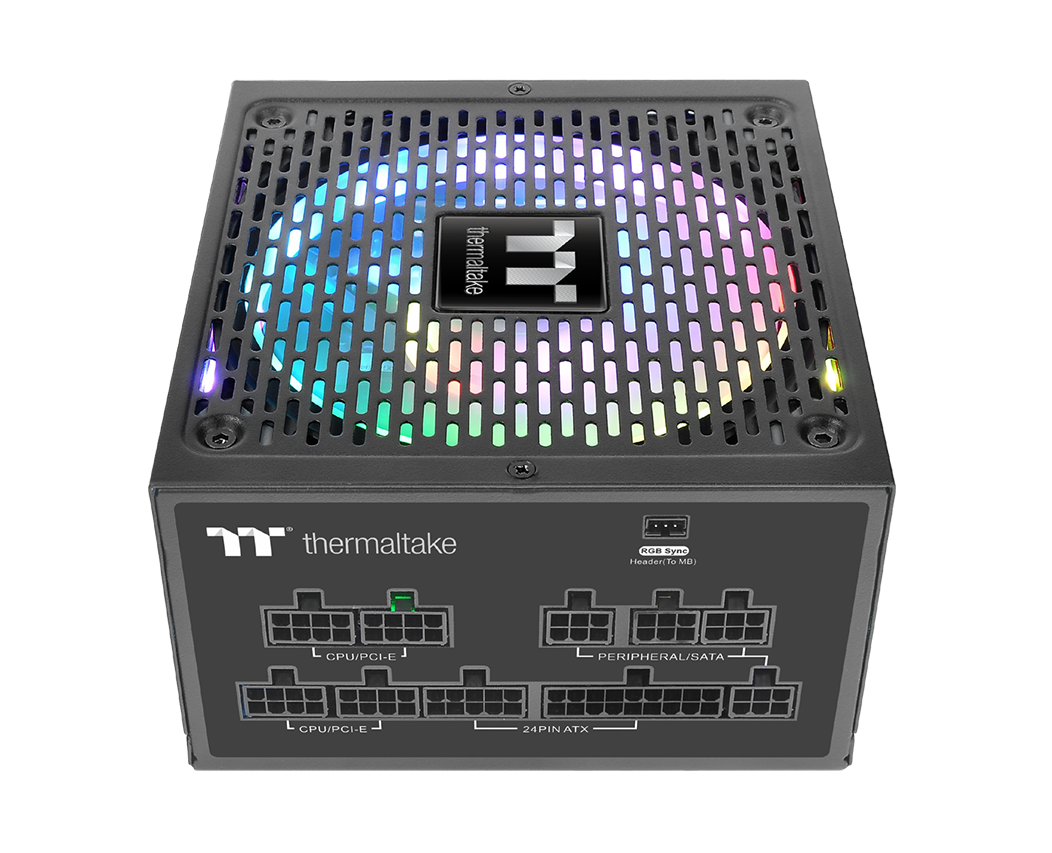

Fully Modular Cable Design
-
DC to DC Design
Sync with Motherboard RGB Software
Designed to
synchronize with ASUS Aura
Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports
motherboards that have a
5V addressable RGB header, allowing you to control the lights directly from the
above-mentioned software
without installing any extra lighting software or controllers. For more details,
please visit ASUS, GIGABYTE,
MSI and ASRock official websites.
Aura Addressable Header
Digital Pin Header
JRAINBOW Header
Addressable RGB LED Header

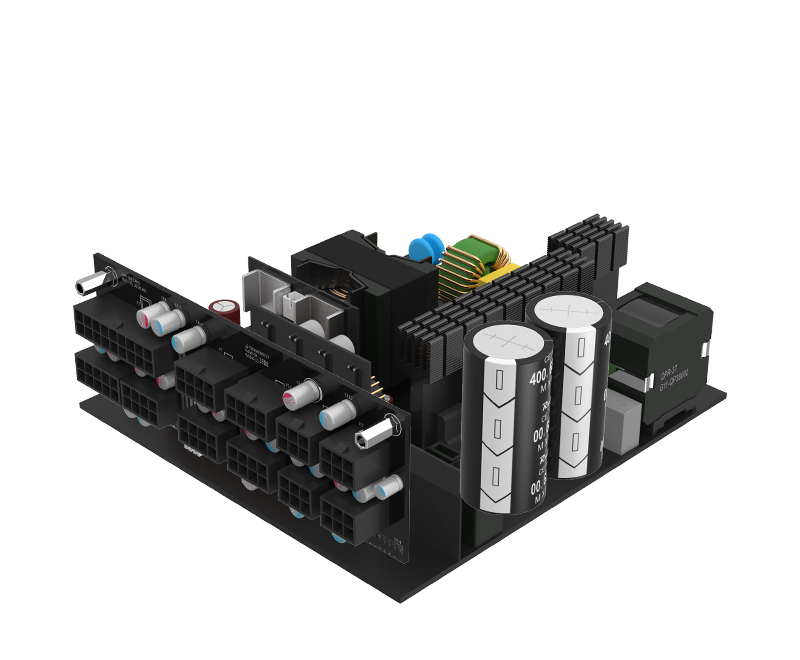

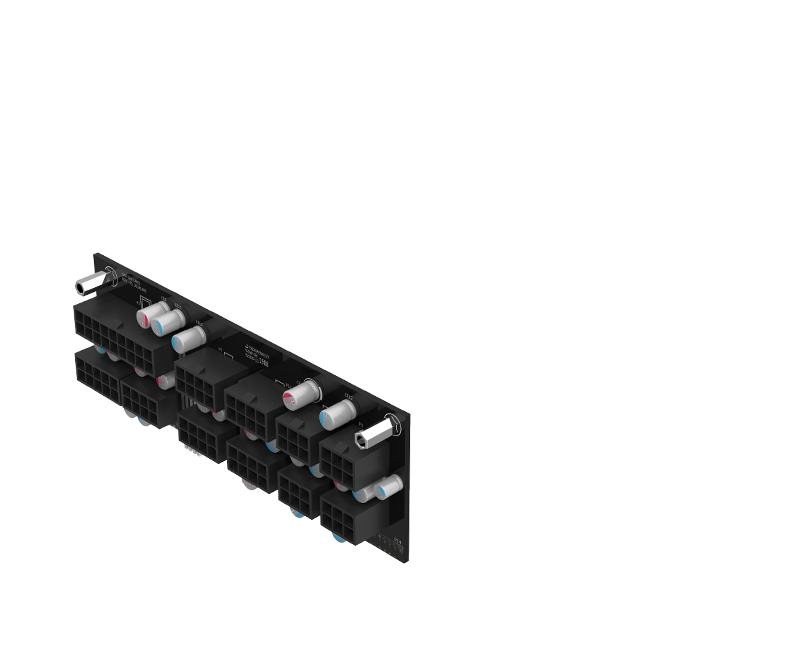

Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

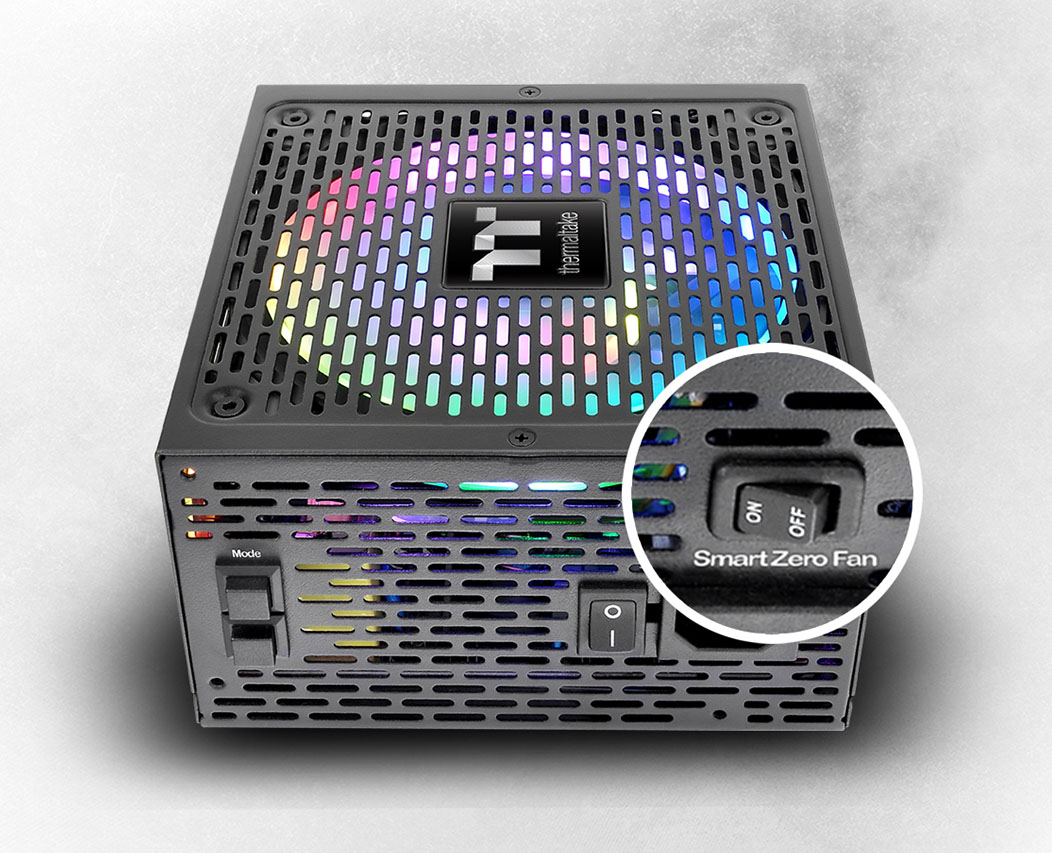

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of
the power supply,
minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V
from 0% to 100% load to
ensure a stable operation and keep your performance-critical components to function
reliably for longer.
Intel Specification
Toughpower GF2 ARGB Series
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s
standard ±5% for major rails
and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest
performance.
Intel Specification
Toughpower GF2 ARGB Series

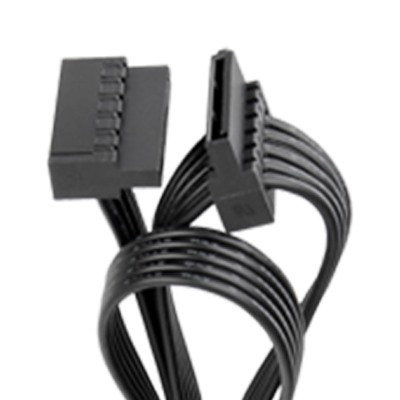

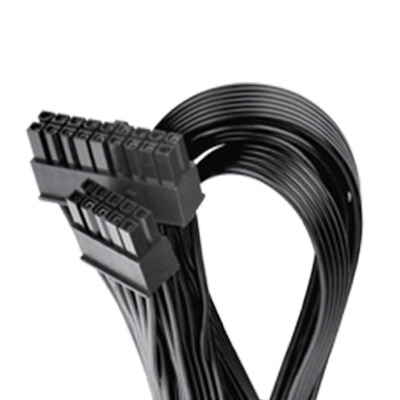

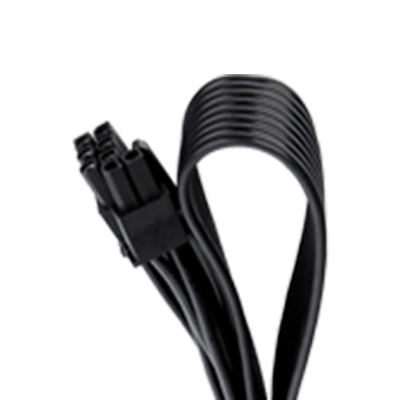

Fully Modular Low-Profile Flat Cable
Offers cable
selection for users while powering the system at an
advantageous voltage. Low-profile flat black cable makes cable management easier,
reduces clutter and
increases airflow inside the chassis.
24pin Main connector (600mm) x 1
ATX 12V 8pin connector (650mm) x 1
ATX 12V 4+4pin connector (650mm) x 1
SATA connectors (500mm + 150mm + 150mm) x 4
SATA connectors (500mm + 150mm + 150mm) x 4
SATA connectors (500mm + 150mm + 150mm) x 4

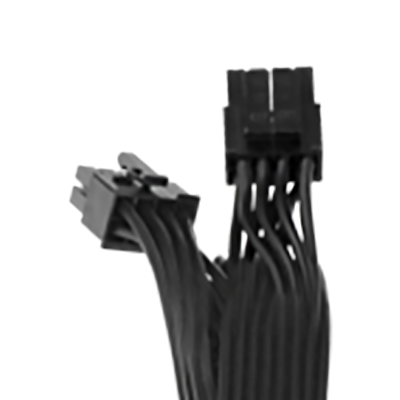

PCI-E 6+2pin connectors (500mm + 150mm) x 2
PCI-E 6+2pin connectors (500mm + 150mm) x 2
PCI-E 6+2pin connectors (500mm + 150mm) x 2

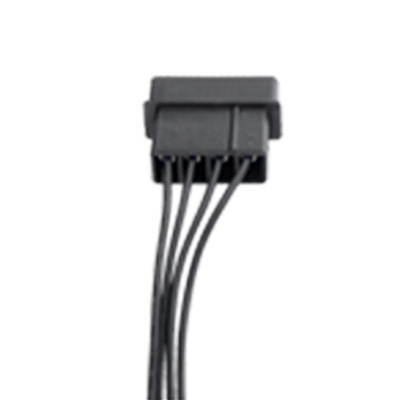

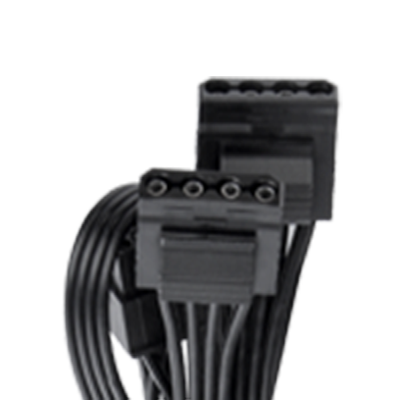

Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 4
Peripheral to Floppy adapter cable (150mm) x 1

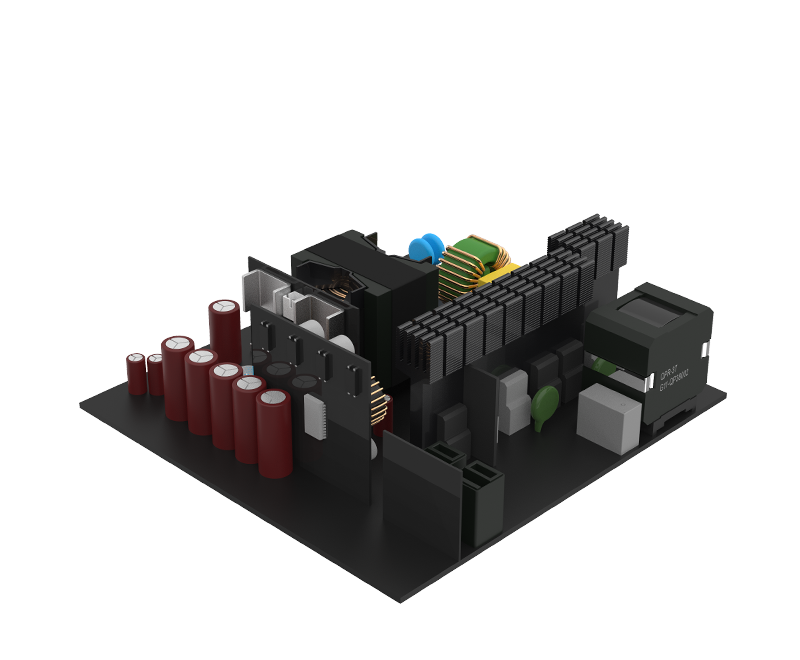

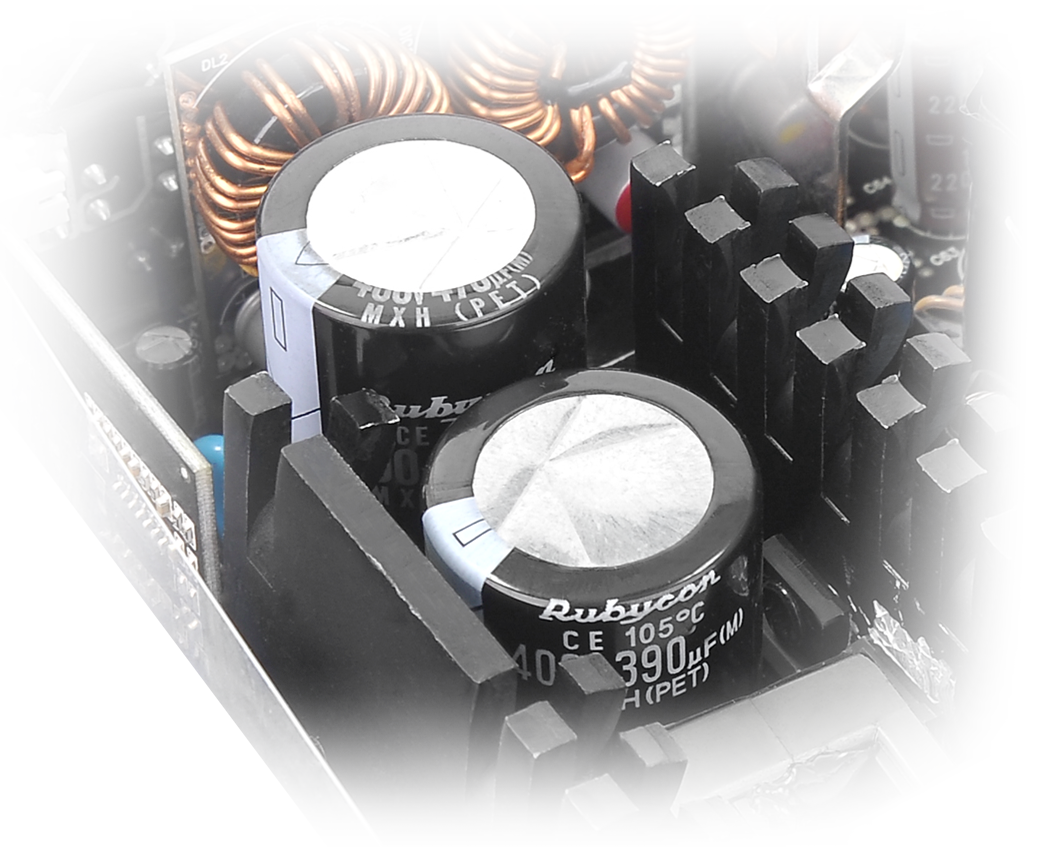

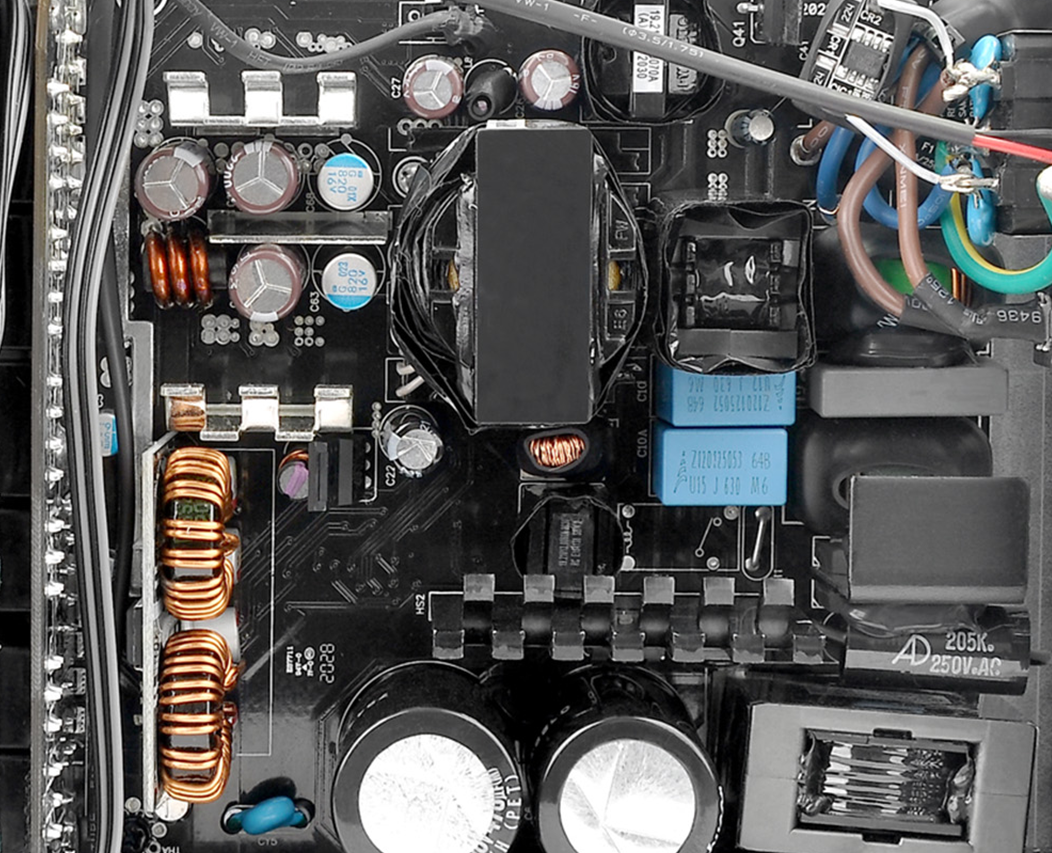

Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the
highest stability, while
remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable
supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF2 ARGB 850W Gold saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | PS-TPD-0850F3FAGK-2 |
|---|---|
| watts | 850W |
| RGB Fan | Yes |
| Form Factor | ATX |
| Model | TTP-850AH3FSG-A |

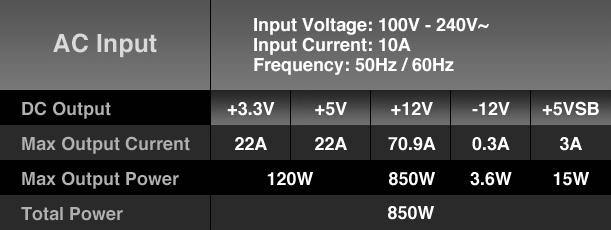

| Max. Output Capacity | 850W |
| Peak Output Capacity | 1020W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 10A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperature | 0°C to + 40°C |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 20% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV/FCC/BSMI/EAC/S-Mark/C-TICK |
| PCI-E 6+2pin | 6 |
| Protection | OCP, OVP, UVP, OPP, SCP, OTP |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
TOUGHPOWER GF2 ARGB 650.750.850W
- Manual
- 2020-12-01
